Composite Materials for PCB Assembly & Electronics
At Specs Advanced Material Sdn. Bhd., we are the authorised distributor of Isola® CDM composite materials in Malaysia.
Isola® CDM materials are specifically developed for solder pallet fabrication and other PCB assembly applications requiring excellent dimensional stability, high-temperature resistance and reliable
machining performance.
Whether you are manufacturing SMT pallets, wave solder pallets or selective solder fixtures, our team can assist in selecting the appropriate material based on your manufacturing process and application requirements.

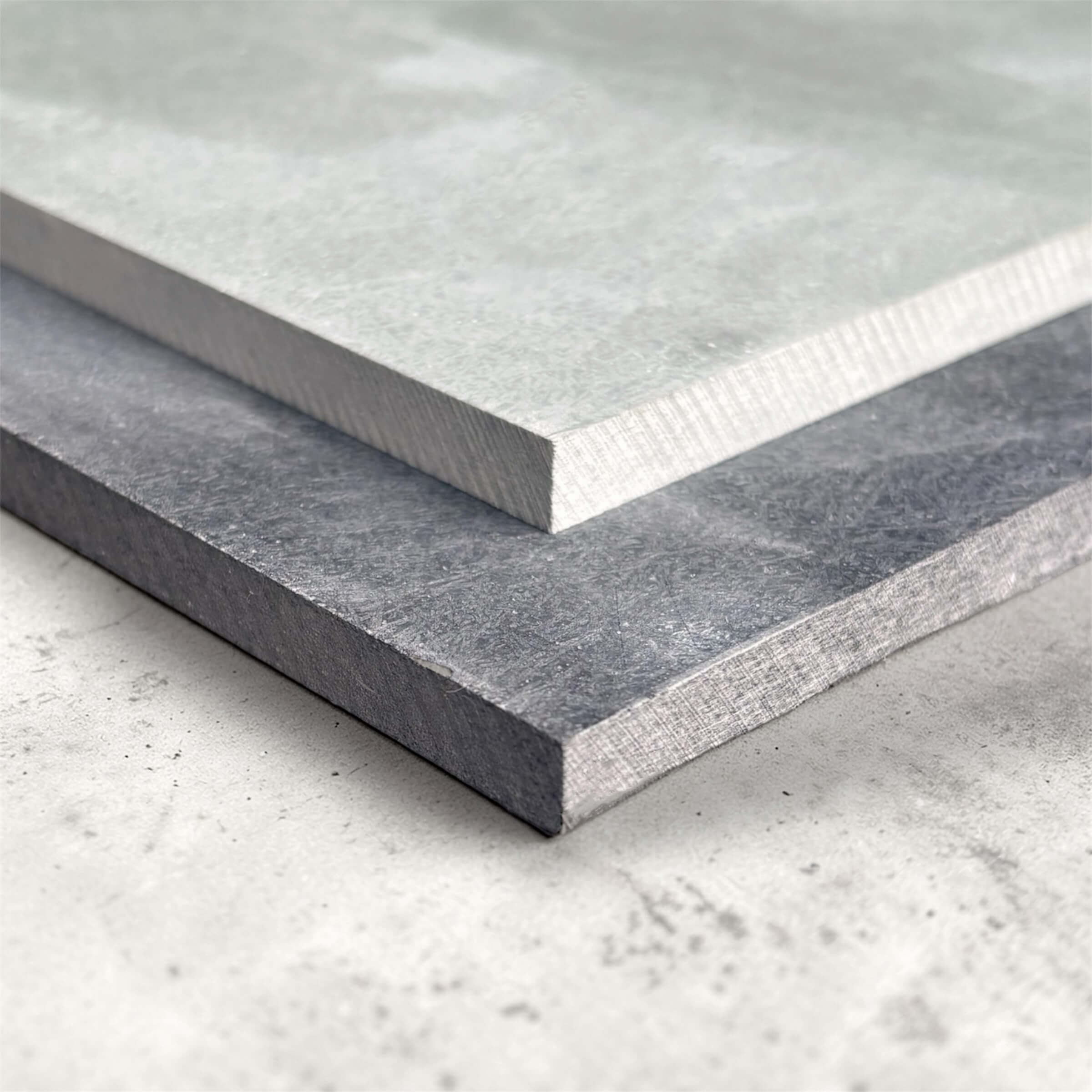

Isola® CDM Composite Materials
Isola® CDM is a high-performance composite material widely used in the electronics manufacturing industry for solder pallet fabrication.
It combines excellent mechanical strength with high temperature resistance, making it suitable for repeated soldering cycles while maintaining dimensional stability.
Key Features
• Excellent dimensional stability
• High temperature resistance
• Excellent machinability
• Good chemical resistance
• Low thermal conductivity
• Electrostatic dissipative (ESD) grades available
• Long service life
• Consistent thickness and flatness
Common applications include:
• SMT Solder Pallets
• Wave Solder Pallets
• Selective Solder Fixtures
• PCB Assembly Fixtures
• Electronic Manufacturing Fixtures
• Precision Machined Composite Parts
Why Choose Isola® CDM
Compared with conventional fixture materials, Isola® CDM offers:
• Excellent resistance to deformation during repeated soldering cycles
• Reduced soldering defects through improved PCB support
• Better protection for heat-sensitive components
• Excellent dimensional accuracy for precision machining
• Longer fixture service life
• Lower maintenance and replacement frequency
Besides supplying genuine Isola® CDM materials, we provide:
- Material recommendation
- Stock availability support
- Technical information
- Application discussion
- Coordination with machining partners where required
Contact us with your drawing, dimensions, material grade and quantity, and our team will assist you with the most suitable solution.
Frequently Asked Questions
Isola CDM® is a high-performance composite pallet material designed for wave soldering, SMT and electronics manufacturing applications.
CDM® ESD 68940 (Grey) and CDM® ESD 68910 (Black).
Up to 300°C (Grey) and 300–350°C (Black).
Yes, both grades are dissipative and ESD safe.
Yes. It has excellent machinability, including thin-wall machining down to 0.5–0.7 mm (Black).
Thickness: 3 to 20 mm (other thicknesses on request).
Sheet sizes:
• 1335 × 1170 mm (3–4 mm)
• 2350 × 1335 mm (5–20 mm)
Store flat and in a dry warehouse. Avoid UV, rain and high humidity.
Yes, but regular cleaning is recommended to extend pallet life.
Yes, it complies with EU RoHS Directive 2011/65/EU and amendment 2015/863/EU.
Wave & reflow soldering, SMT placement, component insertion, solder paste printing, PCB testing and more.
